WHEN SHOULD YOU CHOOSE LASER MARKING OVER PRINTING FOR ENCLOSURES?

DURABLE, MACHINE-READABLE MARKINGS

Laser marking sits in a slightly odd place in the customization toolkit. It isn’t a printing process and it isn’t a coating. It’s a way of altering the material itself – and that distinction matters a great deal once you start thinking about traceability, machine-readable codes and long-term durability. Here’s what’s actually happening on the surface, where it works well, and where it doesn’t.

PHYSICAL IMPACT OF LASER MARKING

Conventional digital, screen and tampo printing add a layer of ink to the enclosure. Laser marking doesn’t add anything. Instead, a focused laser beam delivers enough localized energy to trigger a chemical change in the polymer at and just below the surface – without cutting or engraving it to any meaningful depth.

For most engineering plastics, this shows up as a color shift caused by carbonization or by additives in the compound reacting to the laser energy: a light-colored housing marks dark, a dark housing marks lighter. An off-white ASA+PC enclosure such as EVOTEC will typically laser-mark to a contrasting gray, while an anthracite housing will be marked to a lighter gray.

The exact contrast depends on the base resin, the color compound and the laser parameters (power, pulse frequency, scan speed). So if you have a critical contrast requirement, it’s worth asking for a marked sample on your actual housing color rather than assuming a generic result.

And because the mark is a change in the material rather than a deposit sitting on it, there’s no ink layer to chip, flake or lift, and no adhesive element to fail under exposure to solvents or UV light.

MATERIAL COMPATIBILITY

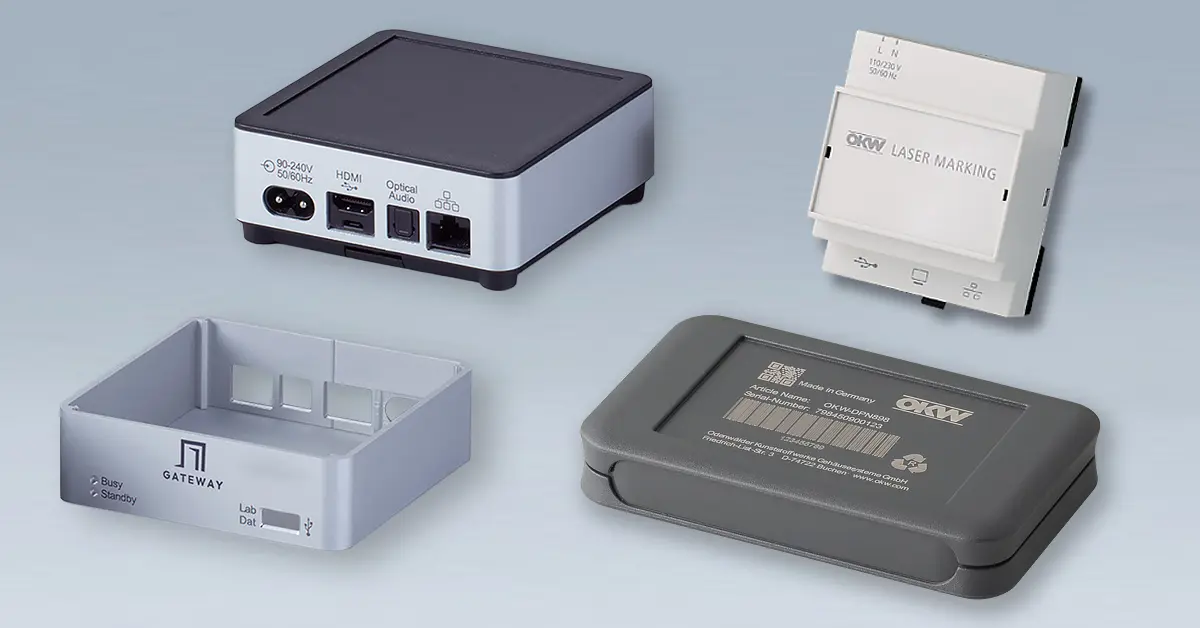

Laser marking works reliably across the plastics most commonly specified for OEM electronics enclosures: ABS, ASA+PC, ASA+PC-FR, PC, PA and PA GF. Aluminum surfaces perform well too, though different methods can be used to laser-mark the surface (rather than shift a pigment).

TPE and similar rubbery materials can be processed but need a case-by-case check, since soft, low-melting-point compounds behave less predictably under thermal energy than rigid engineering plastics. As a general rule, the best contrast and the most consistent read-rate for machine-readable codes comes from white, gray or black housings; strong saturated colors are harder to guarantee.

WHY LASER MARKING MATTERS FOR TRACEABILITY AND CODES

This is where laser marking earns its keep on a spec sheet. Laser marking is usually the safer choice over any printed label or ink-based legend when a device needs a unique identifier, sequential serial number, batch code, QR code, barcode or Data Matrix code that has to survive the life of the product.

A Data Matrix or QR code is only as good as its read reliability, and that depends on consistent, high-contrast edges at a fixed size. The laser can hold tight positional and dimensional tolerance, and the mark won’t fade, smear or peel under handling, so it’s a natural fit for medical device UDI marking, instrumentation asset tags, and any product where a code has to remain scannable after years in the field.

Sequential and variable data is the other strong use case. Serial numbers, date codes and other identifiers that change from part to part are simple to laser-mark from a data file, with no tooling, screen or print plate to prepare or store for each variant. That makes laser marking well suited to shorter runs, where the cost of set-up for conventional printing doesn’t amortise well.

WHERE LASER MARKING IS THE WRONG CHOICE

Laser marking is monochrome by nature: it’s a contrast shift in the existing material color, not an applied ink, so it can’t reproduce multi-color logos or spot-color brand graphics. If your legend calls for a company color, a gradient or several inks, you’re back to digital, screen or tampo printing.

Furthermore, laser marking is not the right choice for very large graphics. Scanning a big filled area takes considerably longer than printing one, so unit cost and cycle time both suffer at scale.

Geometry is worth checking early too, though some uneven and ‘difficult to print’ surfaces can be laser-marked. However, the laser head generally needs a reasonably flat, accessible target area at a consistent working distance, so marking across a tight radius or a deeply recessed panel section can produce uneven contrast at the edges. If you know roughly where the mark needs to sit, it’s worth reviewing that area on a 3D model.

SPECIFYING LASER MARKING

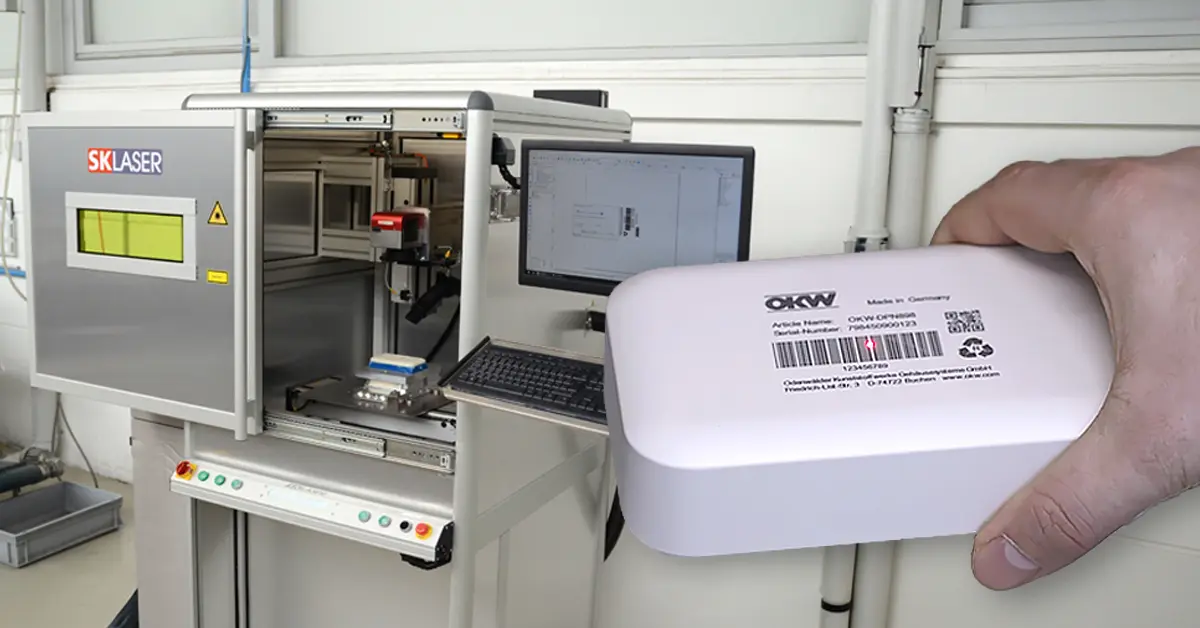

In practice, the enclosure material, housing color and code type are the three things worth deciding before you get in touch. From there it’s a straightforward conversation about laser parameters and the marking area on your chosen enclosure. We laser-mark across our standard plastic and aluminum ranges as part of our in-house customization service, alongside services such as printing, machining and lacquering, so it’s easy to combine laser marking with other finishing on the same job.

GET EXPERT ADVICE

Need more information? Contact us for specialist technical advice about laser marking or any of our other enclosure customization services.
