Carrytec

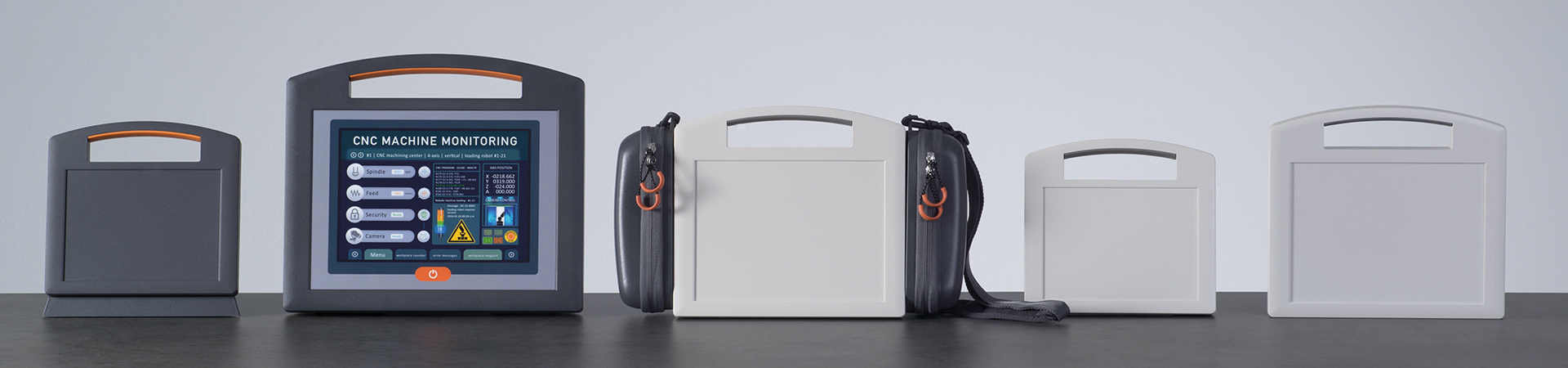

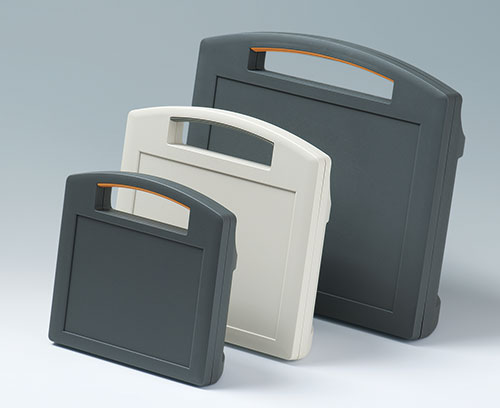

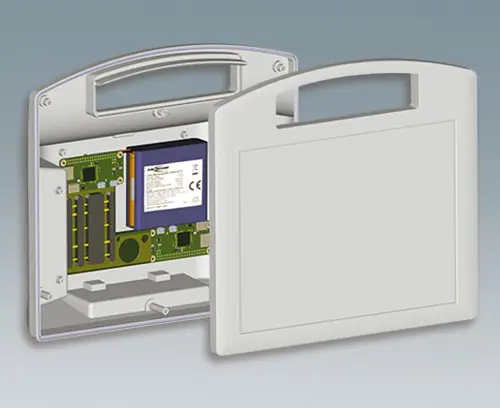

Plastic enclosures with integrated handle

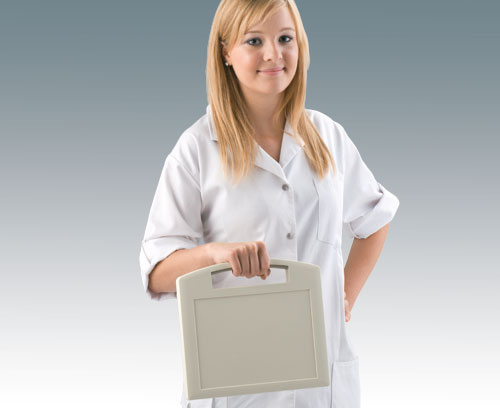

CARRYTEC plastic enclosures are unique in offering a functional handle for many different tasks and situations, indoors and outdoors.

  • integrated handle with soft insert for perfect, non-slip grip

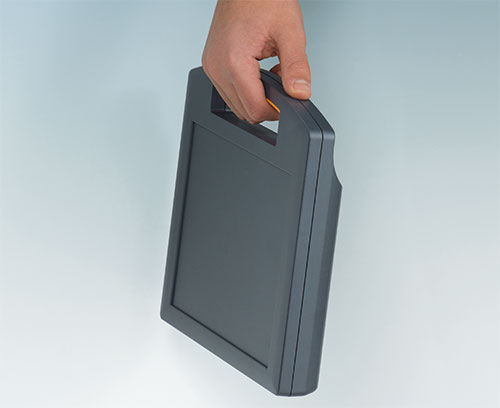

  • CARRYTEC M in a slim enclosure version for mounting tablets etc.
  • handle located above the center of gravity for balanced carrying

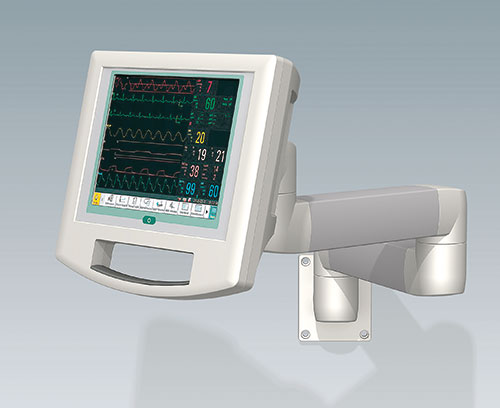

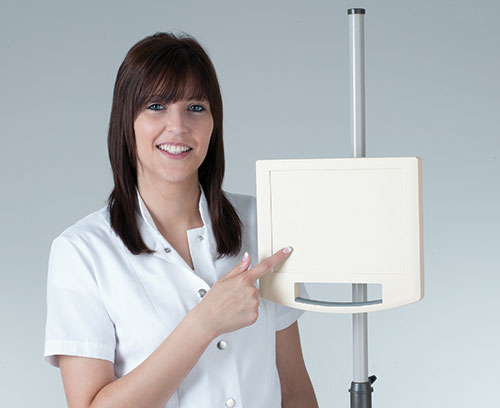

  • rear can be installed on a tripod or support arm systems for fast positioning and alignment of the viewing and operating panels, and orderly cable management
  • especially large surface area that is ideal for user interfaces (S: 8.4"/21 cm; M: 10.4"/26 cm; L: 13.4"/34 cm)
  • ample installation depth and plenty of room for interfaces, yet slim appearance

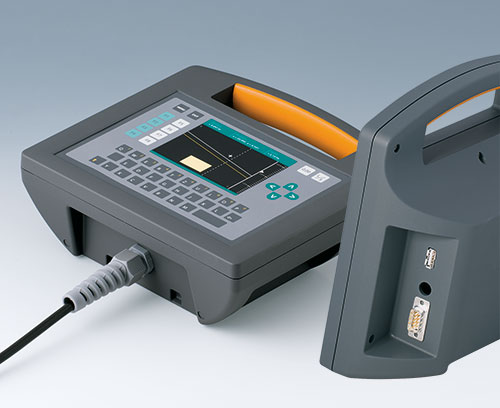

  • interfaces are protected by inset areas on the underside

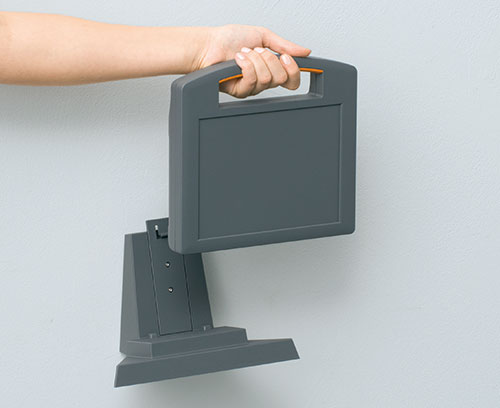

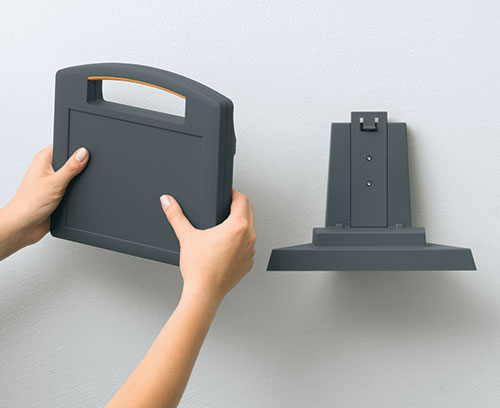

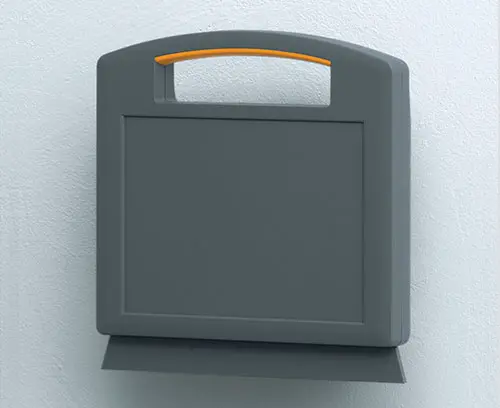

  • secure storage on table stand and/or wall suspension element; easy transmission of data and charging current, contacts as accessories (except slim enclosure version)

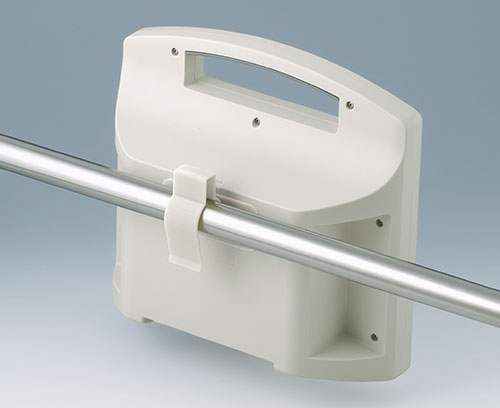

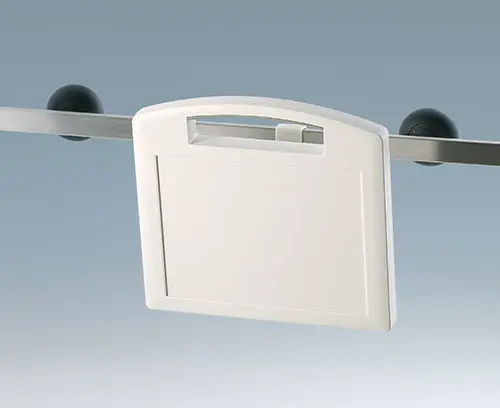

  • holding clamp for round tubes and rails according to DIN EN ISO 19054
  • available molded in impact resistant plastic material, and darker colors, for tough/dirty conditions indoor or outdoor
  • protection class IP 54 with sealing (accessory)

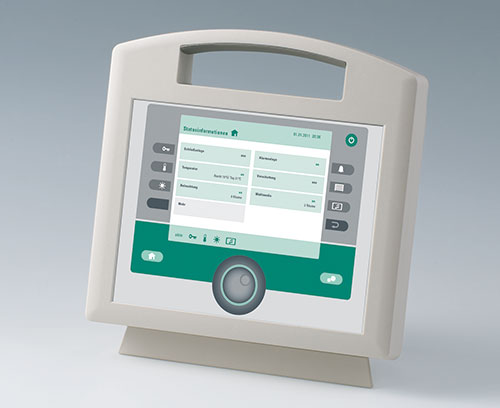

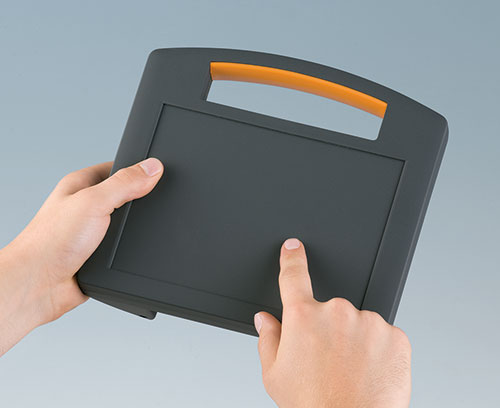

  • recessed operating area for protecting the membrane keypad
  • the enclosures are easy to clean

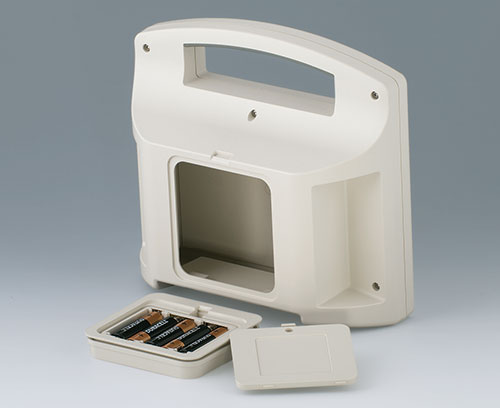

  • a battery compartment for 5 x AA cells can be fitted (machining required)

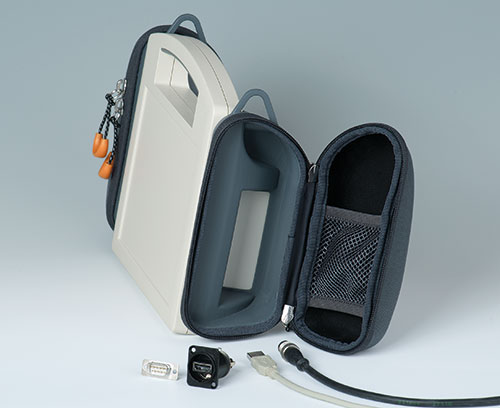

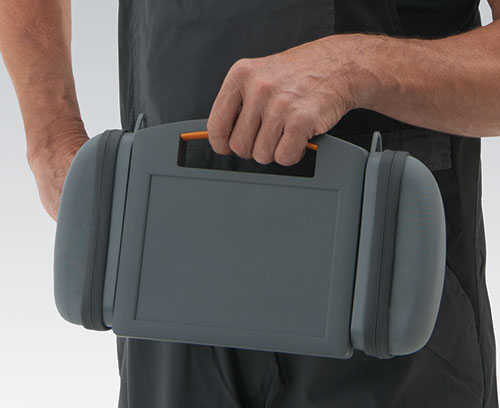

  • optional protection bags for carrying probes, sensors, cables etc. (sizes S and M)

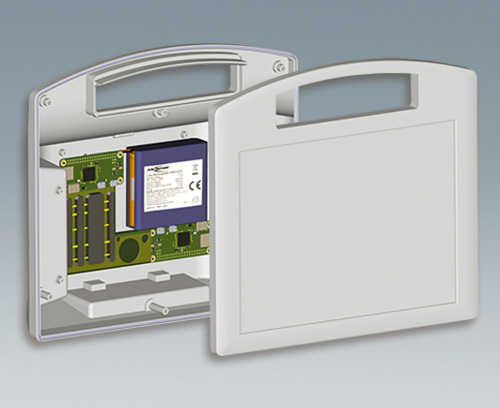

  • internal fastening pillars for PCBs
Generate PDF

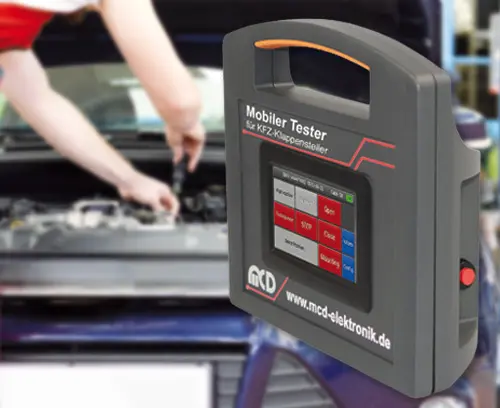

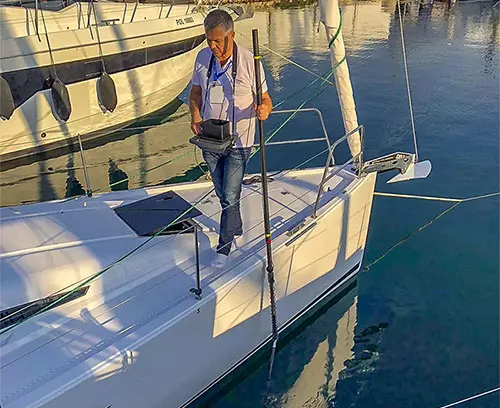

Application Fields

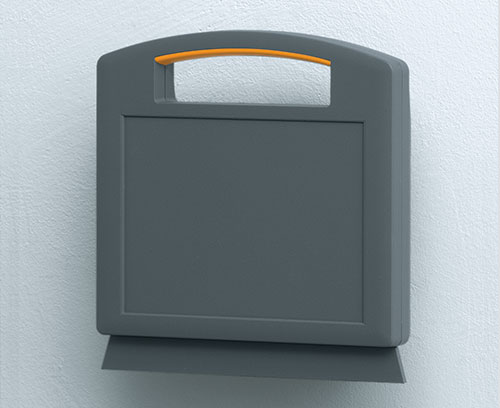

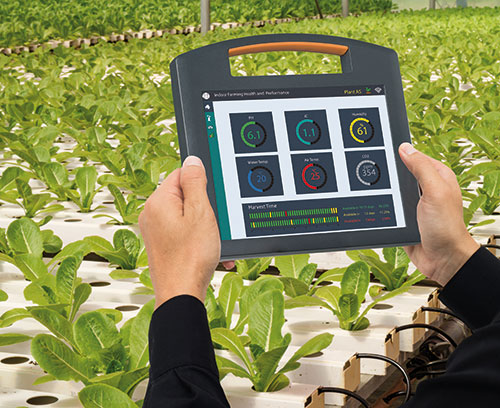

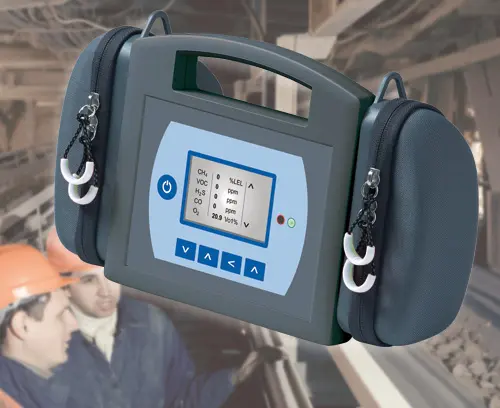

Unique variety of possible uses: mobile – desktop – wall mounted – rail mounted – round tube – tripod – suspension arm. Depending on the application (indoor/outdoor) this innovative enclosure is available in different materials, e.g. high-impact plastic material in darker colors for tough conditions.
Medical, e.g. emergency systems, monitoring and alarm equipment. Diagnostics, therapy, laboratory devices. Test and measurement equipment. Communication technology. Mobile terminals, data collection units. Energy management systems. Sensors. Industry 4.0, smart factory. Machine building and construction equipment. Agricultural economics, forestry.

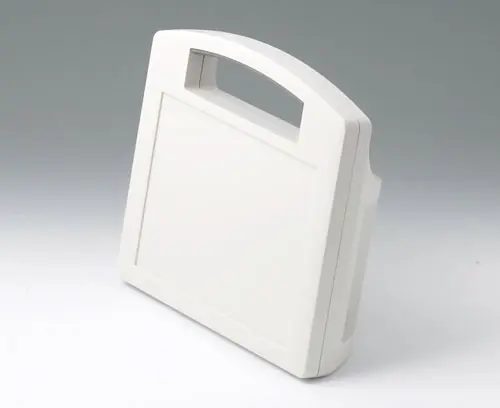

B4208107 CARRYTEC S

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4208107

CARRYTEC S
product added to your basket

off-white RAL 9002
8.74″x8.07″x3.15″

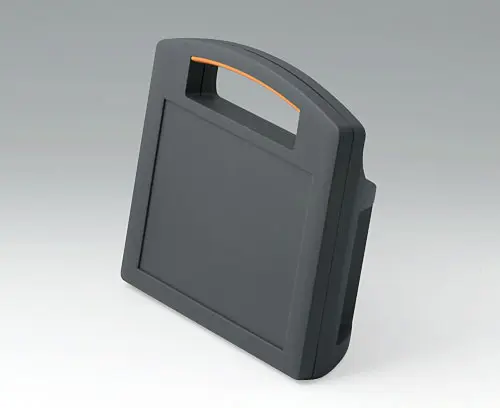

B4208208 CARRYTEC S

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4208208

CARRYTEC S
product added to your basket

lava
8.74″x8.07″x3.15″
B4210107 CARRYTEC M

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4210107

CARRYTEC M
product added to your basket

off-white RAL 9002
10.63″x9.72″x3.58″

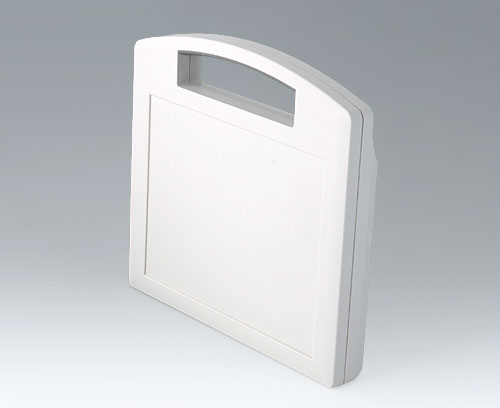

B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4210127

CARRYTEC M slim version
product added to your basket

off-white RAL 9002
10.63″x9.72″x1.65″

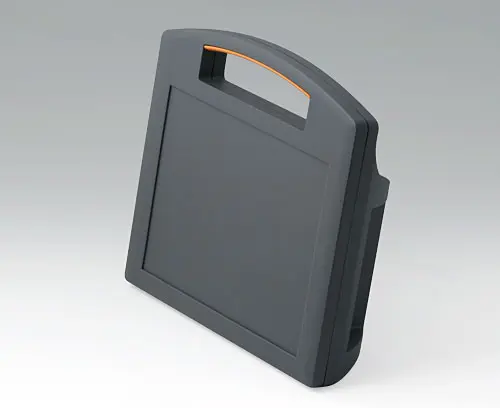

B4210208 CARRYTEC M

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4210208

CARRYTEC M
product added to your basket

lava
10.63″x9.72″x3.58″

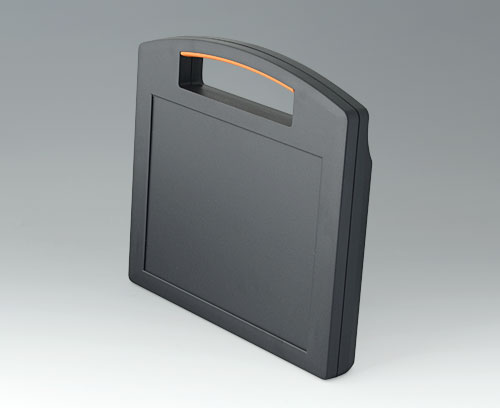

B4210228 CARRYTEC M slim version

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4210228

CARRYTEC M slim version
product added to your basket

lava
10.63″x9.72″x1.65″

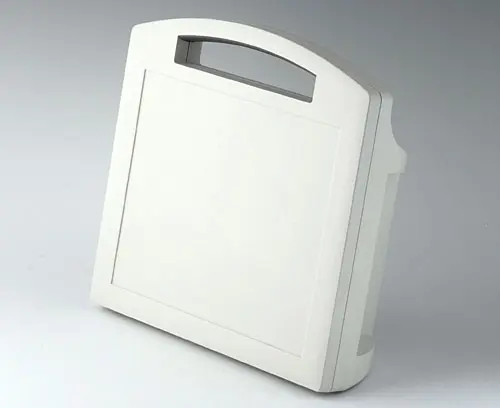

B4213107 CARRYTEC L

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4213107

CARRYTEC L
product added to your basket

off-white RAL 9002
13.70″x11.93″x4.61″

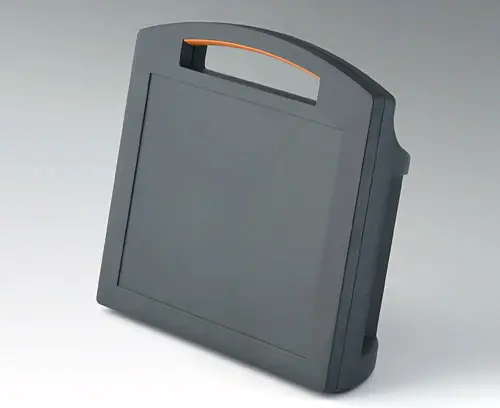

B4213208 CARRYTEC L

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

B4213208

CARRYTEC L
product added to your basket

lava
13.70″x11.93″x4.61″

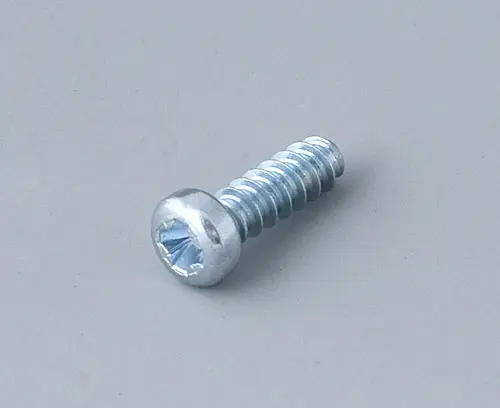

A0325080 Self-tapping screws 0.098" x 0.315" (PZ1)

A0325080

Self-tapping screws 0.098" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0325080

Self-tapping screws 0.098" x 0.315" (PZ1)
product added to your basket
A9178007 Contacts, male

A9178007

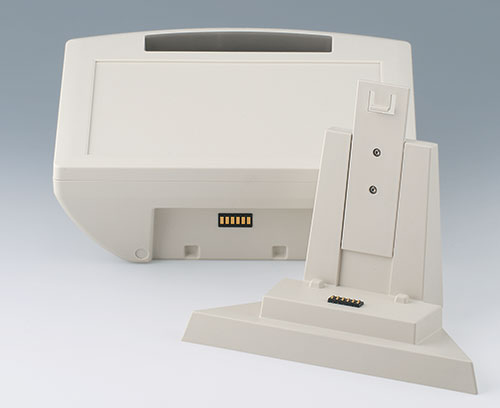

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
product added to your basket
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
product added to your basket
gold-plated

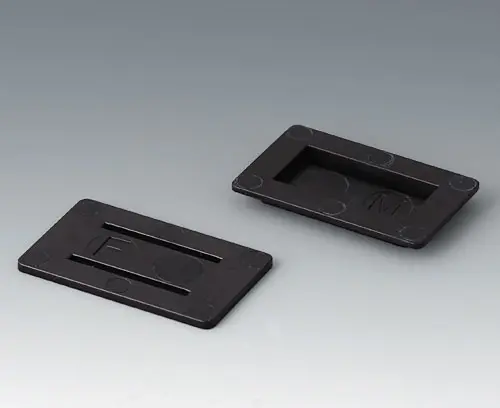

A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

A9193042

Mounting plates for contacts
product added to your basket

black RAL 9005

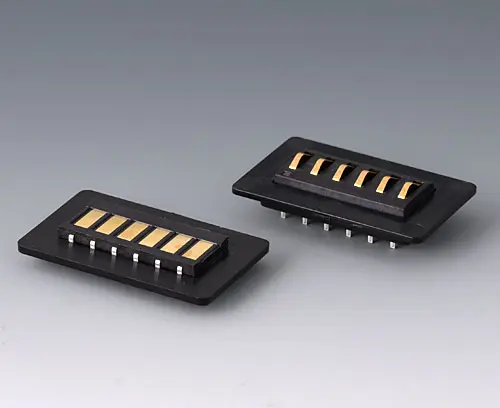

A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

A9193044

Contacting kit, 6-pin
product added to your basket

black RAL 9005

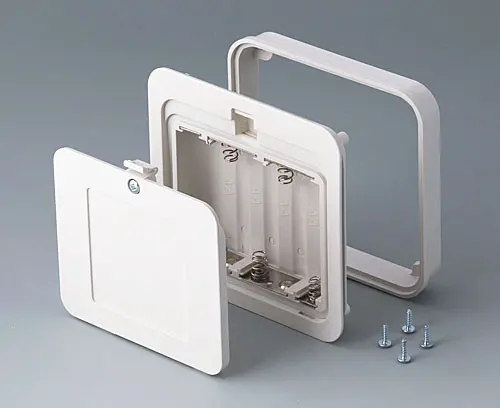

A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

A9338117

Battery compartment kit, 5 x AA
product added to your basket

off-white RAL 9002
3.66″x3.86″

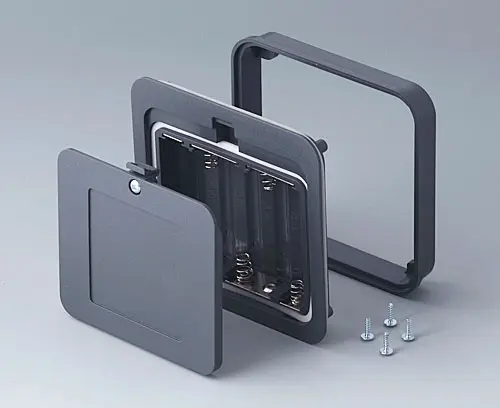

A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

A9338218

Battery compartment kit, 5 x AA
product added to your basket

lava
3.66″x3.86″

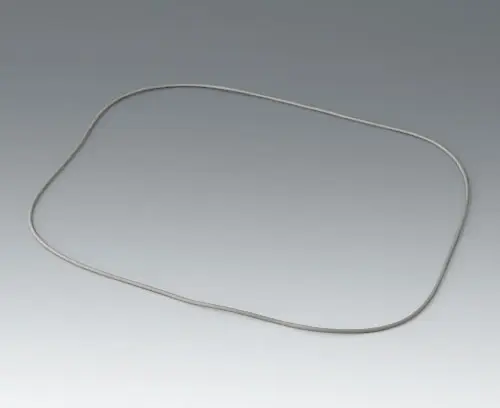

B4308001 Sealing S

B4308001

Sealing S Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.

Supply 1 sealing

B4308001

Sealing S
product added to your basket

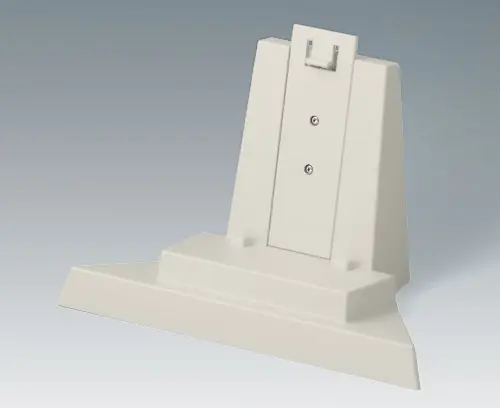

B4308117 Station S/M

B4308117

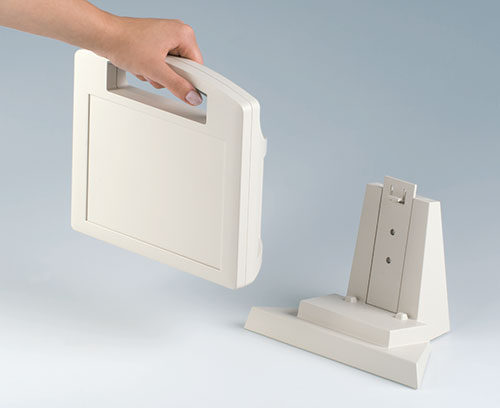

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

B4308117

Station S/M
product added to your basket

off-white RAL 9002

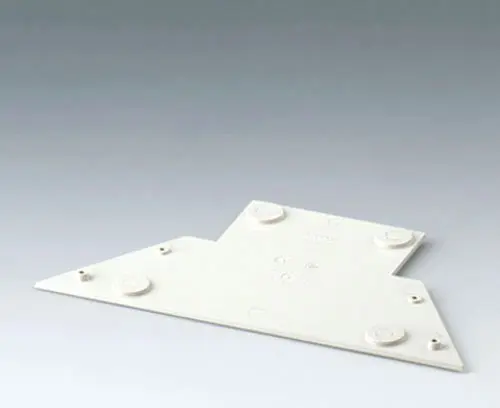

B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

B4308127

Base plate for station
product added to your basket

off-white RAL 9002

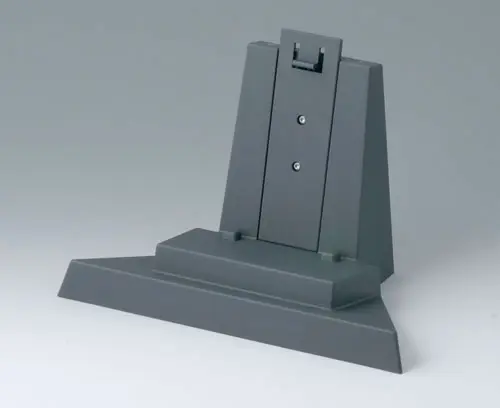

B4308218 Station S/M

B4308218

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

B4308218

Station S/M
product added to your basket

lava

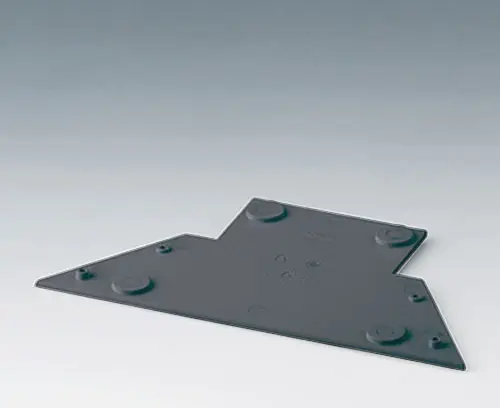

B4308228 Base plate for station

B4308228

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

B4308228

Base plate for station
product added to your basket

lava

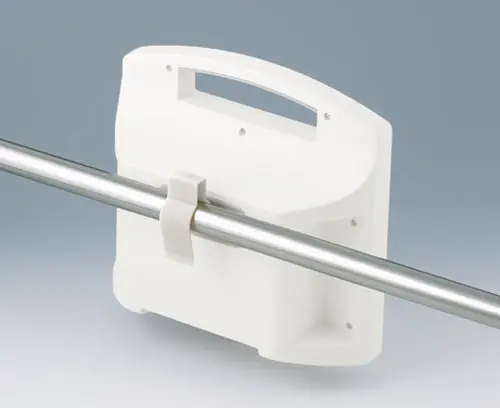

B4308237 Holding clamps

B4308237

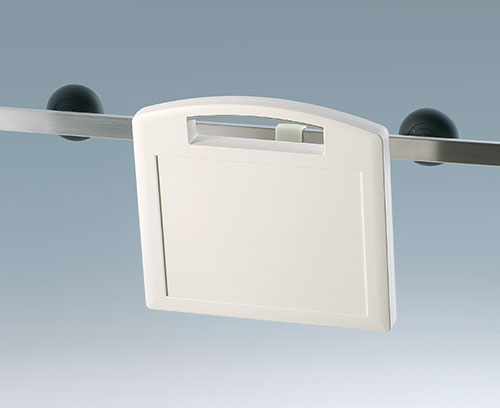

Holding clamps For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

B4308237

Holding clamps
product added to your basket

off-white RAL 9002

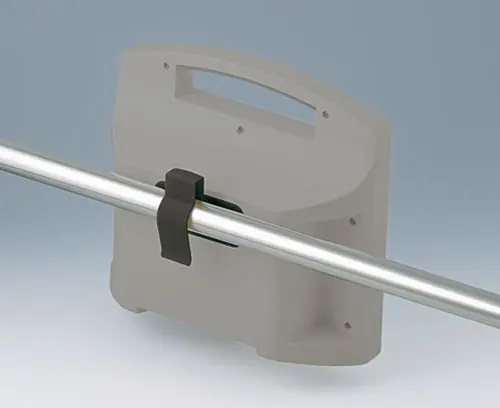

B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 1.260" and standard equipment rails DIN EN ISO 19054 (0.984" x 0.394"). 2 locating holes Ø 0.094" are required. For attachment, 2 stainless steel Torx screws Ø 0.118" x 0.315" (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

B4308238

Holding clamps
product added to your basket

lava

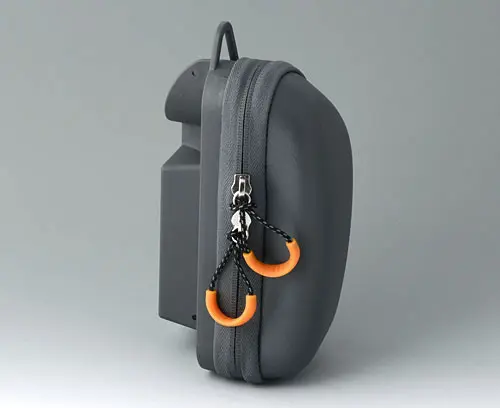

B4308600 Carrying case S, right-hand side

B4308600

Carrying case S, right-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

B4308600

Carrying case S, right-hand side
product added to your basket
gray
3.23″x7.09″x2.56″
B4308610 Carrying case S, left-hand side

B4308610

Carrying case S, left-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

B4308610

Carrying case S, left-hand side
product added to your basket
gray
3.23″x7.09″x2.56″

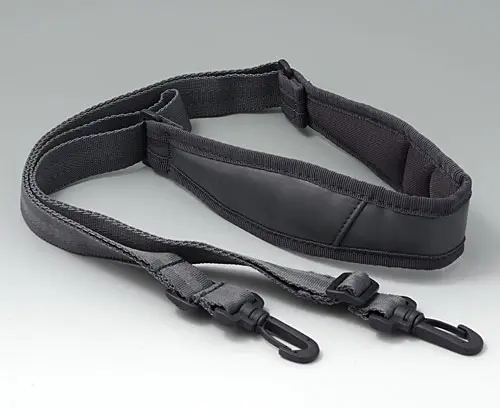

B4308650 Shoulder strap

B4308650

Shoulder strap Practical shoulder strap with shoulder padding.
Mounting on CARRYTEC enclosures only in conjunction with left and right Carrying cases.

Supply 1 shoulder strap

B4308650

Shoulder strap
product added to your basket
gray
55.12″

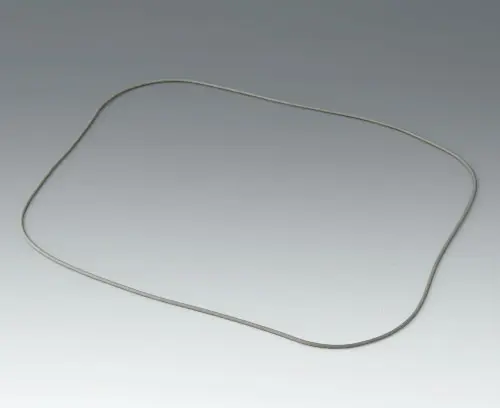

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

B4310001

Sealing M
product added to your basket
B4310600 Carrying case M, right-hand side

B4310600

Carrying case M, right-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

B4310600

Carrying case M, right-hand side
product added to your basket
gray
3.90″x8.43″x2.52″

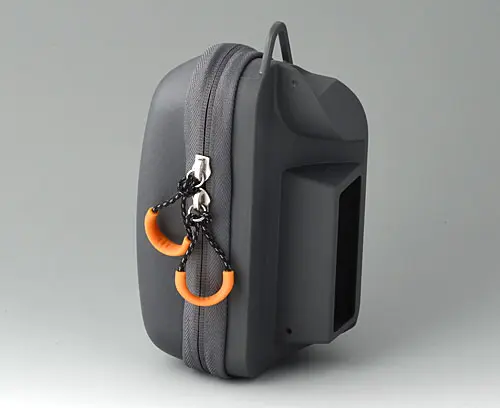

B4310610 Carrying case M, left-hand side

B4310610

Carrying case M, left-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a molded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

B4310610

Carrying case M, left-hand side
product added to your basket
gray
3.90″x8.43″x2.52″

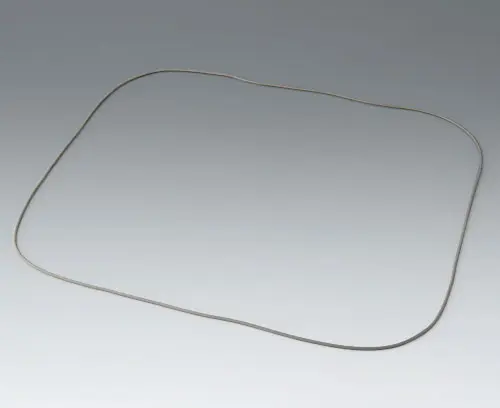

B4313001 Sealing L

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

B4313001

Sealing L
product added to your basket

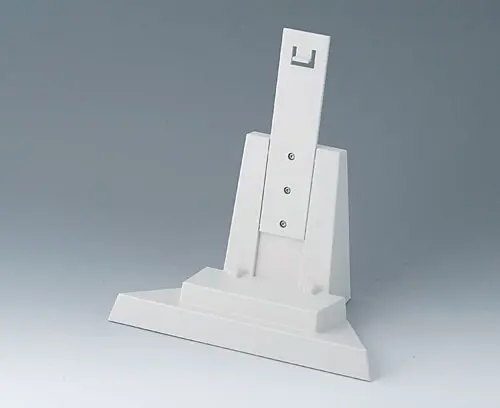

B4313117 Station L

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

B4313117

Station L
product added to your basket

off-white RAL 9002

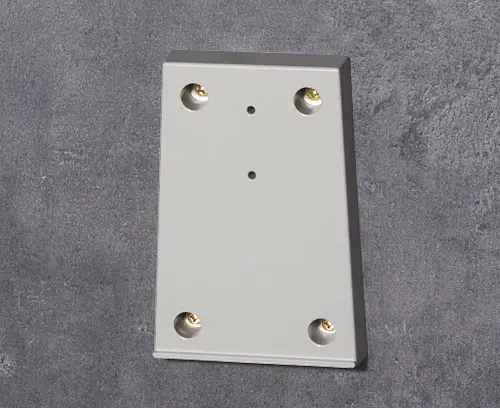

B4313147 Adapter for Station L

B4313147

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

B4313147

Adapter for Station L
product added to your basket

off-white RAL 9002

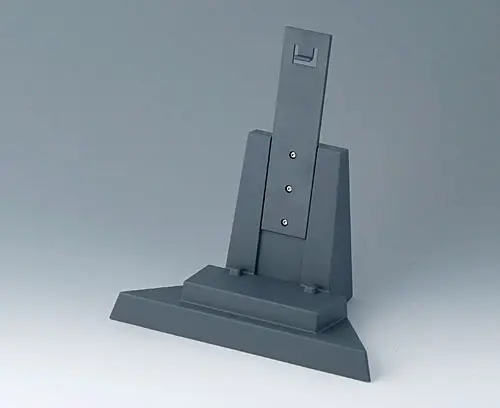

B4313218 Station L

B4313218

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

B4313218

Station L
product added to your basket

lava

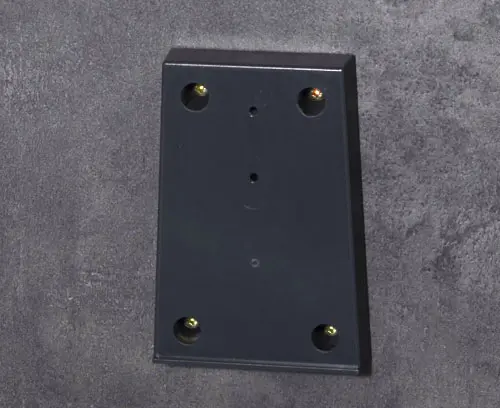

B4313248 Adapter for Station L

B4313248

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

B4313248

Adapter for Station L
product added to your basket

lava

Customizing options for Carrytec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
